RBSV: Removable Balcony Soffit Vent
  • For New or Retrofit Construction

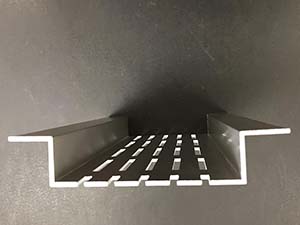

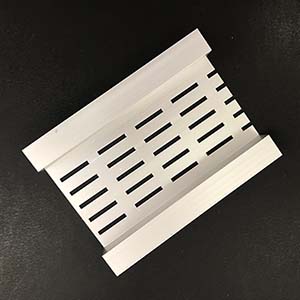

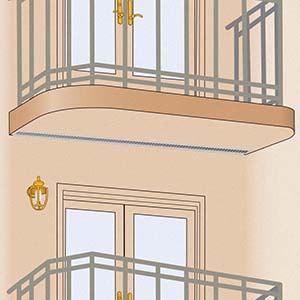

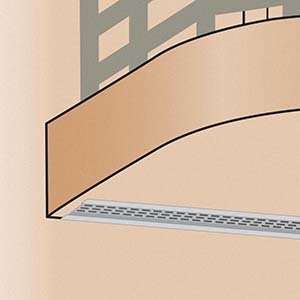

A removable soffit vent that permits access to the balcony soffit space for inspection at the balcony/wall transition and allows for free air movement and ventilation. Complies with the City of Berkley R1 and R2 Zoning Districts for Exterior Elevated Elements. The soffit vent is easily installed and removed. 1/2” wide return legs are provided that will cover the rough opening.

Materials: (General Information)
  • Aluminum Alloy (6063 T-5)

Reference Info:


ASTM Codes: (General Information)
  • B221-14 (Aluminum)
  • B136 (Anodize Coating)
  • B244 (Anodize Coating)
  • C1063 (Accessories)
  • D4214 (Paint Films)

Notes: (General Information)
  • Standard length is 10 feet. Additional lengths available upon request.
  • Please note not all items are available in stock in all the available metals or size combinations listed.
  • Not all X Sizes (Depth) or Y Sizes (Reveal) combinations are available.

Specifications:
Length
10'
X Size
3/4"
Y Size
2"
3"
4"
